Ce projet a été réalisé dans le cadre d'une collaboration entre l'école 42 et l'écolé d'art lazada. Le but était de réaliser une ia ayant des problemes psychatrique en binome. Nous avons donc décidé de réaliser un enfant ayant des tics.
7 Commits 1 Branch 0 Tags 12 MiB
Python 71.7%
C++ 28.3%
be70363025
Go to file
acabon be70363025
Update README.md
2025-05-09 21:16:50 +02:00
arduino add project 2025-03-07 15:57:11 +01:00
assets update readme 2025-03-07 16:36:27 +01:00
main.py add readme 2025-03-07 16:27:11 +01:00
README.md Update README.md 2025-05-09 21:16:50 +02:00

README.md

🚀 IA Hackathon Project

Arduino Project

Welcome to IA Hackathon Project! About This project was made as part of a collaboration between 42 school and Lazada art school. The goal was to make an AI with psychiatric problems in pairs. So we decided to make a child with tics. 🎯


📌 Features

✅ Motor activation based on python request\n ✅ Request to mistral API\n ✅ Talk to text\n ✅ Text to talk\n

🛠️ Required Components

Component Quantity
Arduino Uno 1
Motor 1
Relais Arduino 1
Wires Several

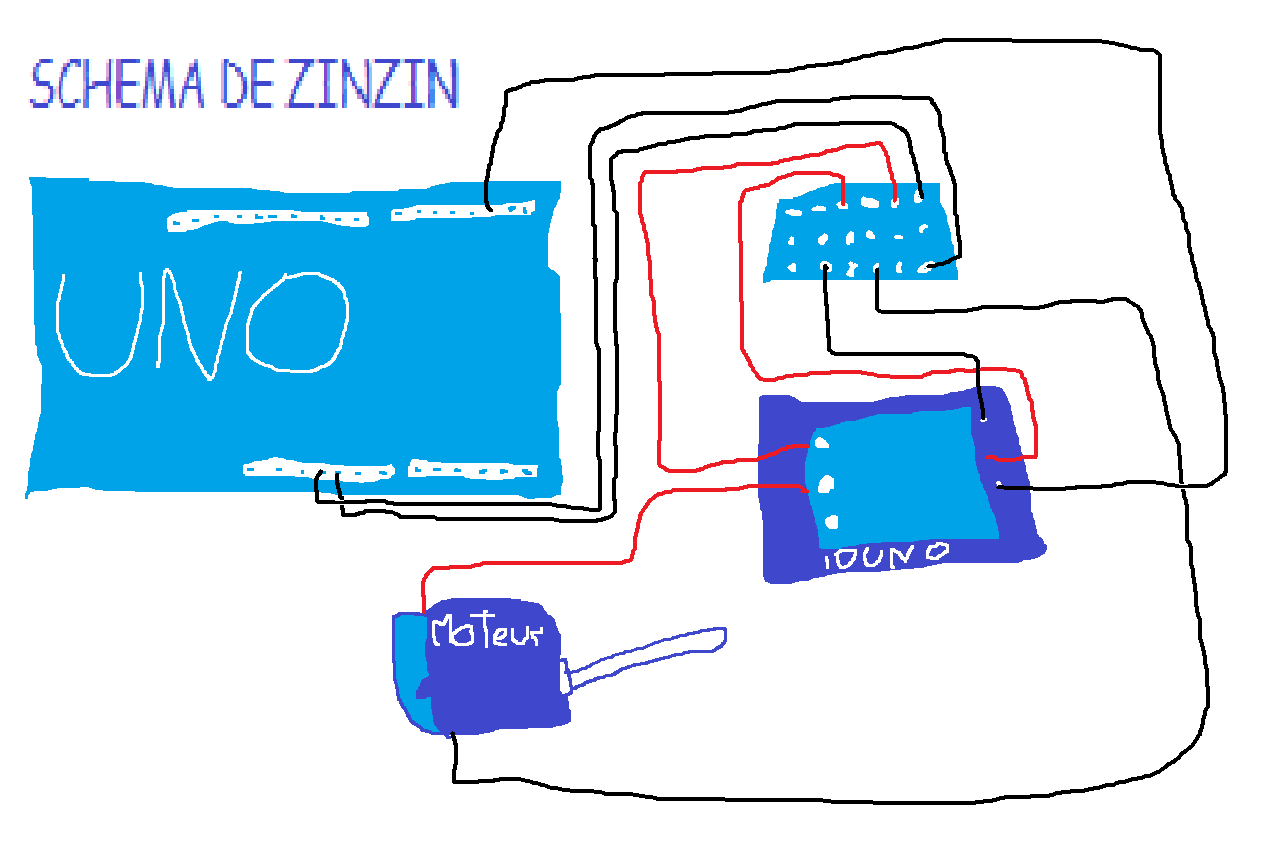

⚙️ Wiring Diagram

Here’s how to connect the components:

Schemat

📌 Explanation:

  1. Connect the GND and NO (Normally Open) pins of the relay to the GND pin of the Arduino board.
  2. Connect the CVV pin of the relay to the D2 pin of the Arduino.
  3. Connect the NC (Normally Closed) pin of the relay to the GND pin of the motor.
  4. Connect the 5V pin of the motor and the SING pin of the relay to the 5V power supply.

🖥️ Installation

1️⃣ Clone this repository:

git clone https://github.com/user/my-arduino-project.git

2 follow the diagram for the connections 3 update motor.ino in arduino card and close the IDE Arduino (for resolve Serial problem) 4 Install all lib :

pip install requests openai-whisper sounddevice numpy soundfile pyttsx3 pygame pyserial

5 Replace MY_API_KEY and COM_OF_THE_ARDUINO in main.py 6 Run main.py

python main.py
